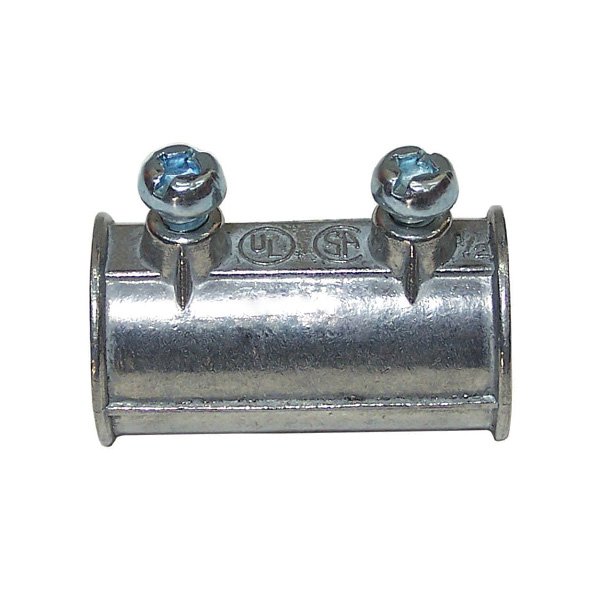

PB-EMT3-10 -SCREWED COUPLING
| SCREWED COUPLING | ||||||||||
| CODE | DIA | A | B | PACKAGE/ M | ||||||
| PP-EMT3-10-15 | 1/2 | 1,02 | 1,57 | 100 | ||||||
| PP-EMT3-10-20 | 3/4” | 1,94 | 1,28 | 100 | ||||||
| PP-EMT3-10-25 | 1” | 1,53 | 2,27 | 50 | ||||||
| PP-EMT3-10-32 | 1-1/4” | 1,99 | 2,63 | 25 | ||||||
| PP-EMT3-10-40 | 1-1/2” | 2,23 | 2,94 | 10 | ||||||
| PP-EMT3-10-50 | 2” | 2,69 | 3,50 | 5 | ||||||
Pressure Class: Steel, Die cast Zinc
Installation Temperature: -25 °C / + 90 °C
Installation Type: To allow the connection of two rigid conduit, protection degree IP 40
In accordance with: UL 514B
